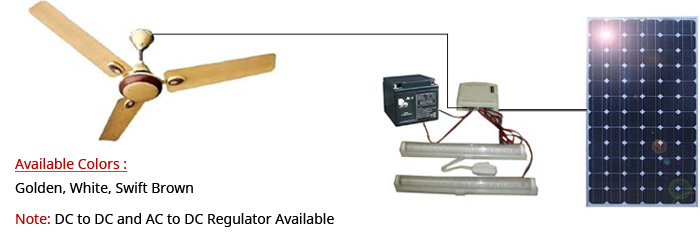

BLDC 12V/24V/48V Ceiling Fan is made to the highest quality giving the customer years of trouble free use.
Switches: Because of the motor design, the fan is operated by a wall switch. The Vari-Fan does not come with a switch, but one can be purchased from us.
| Class | Specifications |
|---|---|
| Size in Blade | 36" (900mm) |
| Rated Volatge | 12V DC |
| Rated Current | 1- 1.5 A |
| Rated Power | < 18Watt |
| Air Delivery | 160CMM |
| Speed Control | 4 To 5 |
| Switch Type | Step Switch |
| Shell Material | Metal |
| Blade's Material | Metal |
| Noise | 27DB - A |
| Rotational Speed | > 415 RPM |
| Wind Type | Soft & Strong |
| Rotative Angle | NO |
| Motor Type | DC Current, Brushless Motor |
| Weight | 2.9 Kg |
| Class | Specifications |
|---|---|
| Size in Blade | 42" (1050mm) |
| Rated Volatge | 12V DC |
| Rated Current | 1.5 - 2 A |
| Rated Power | < 24Watt |
| Air Delivery | 180CMM |
| Speed Control | 4 To 5 |
| Switch Type | Step Switch |
| Shell Material | Metal |
| Blade's Material | Metal |
| Noise | 27DB - A |
| Rotational Speed | > 360 RPM |
| Wind Type | Soft & Strong |
| Rotative Angle | NO |
| Motor Type | DC Current, Brushless Motor |
| Weight | 3.3 Kg |
| Class | Specifications |
|---|---|
| Size in Blade | 48" (1200mm) |
| Rated Volatge | 12V DC |
| Rated Current | 1.8 - 2.5 A |
| Rated Power | < 30Watt |
| Air Delivery | 200CMM |
| Speed Control | 3 To 5 / Remote control |
| Switch Type | Step Switch |
| Shell Material | Metal |
| Blade's Material | Metal |
| Noise | 27DB - A |
| Rotational Speed | > 300 RPM |
| Wind Type | Soft & Strong |
| Rotative Angle | NO |
| Motor Type | DC Current, Brushless Motor |
| Weight | 3.9 Kg |
| Class | Specifications |
|---|---|
| Size in Blade | 52" (1300mm) |
| Rated Volatge | 24V DC |
| Rated Current | 1.25 A |
| Rated Power | < 30Watt |
| Air Delivery | 200CMM |
| Speed Control | 3 Electrically |
| Switch Type | Step Switch |
| Shell Material | Metal |
| Blade's Material | Metal |
| Noise | 70dB |
| Rotational Speed | > 320 RPM |
| Wind Type | Soft & Strong |
| Rotative Angle | NO |
| Motor Type | DC Current, Brushless Motor |
| Weight | 4.1 Kg |
| Class | Specifications |
|---|---|
| Size in Blade | 48" (1200mm) |
| Rated Volatge | 48V DC |
| Rated Current | 0.62 A |
| Rated Power | < 30Watt |
| Air Delivery | 210CMM |
| Speed Control | 3 Electrically |
| Switch Type | Step Switch |
| Shell Material | Metal |
| Blade's Material | Metal |
| Noise | 70dB |
| Rotational Speed | > 320 - 350 RPM |
| Wind Type | Soft & Strong |
| Rotative Angle | NO |
| Motor Type | DC Current, Brushless Motor |
| Weight | 3.9 Kg |
